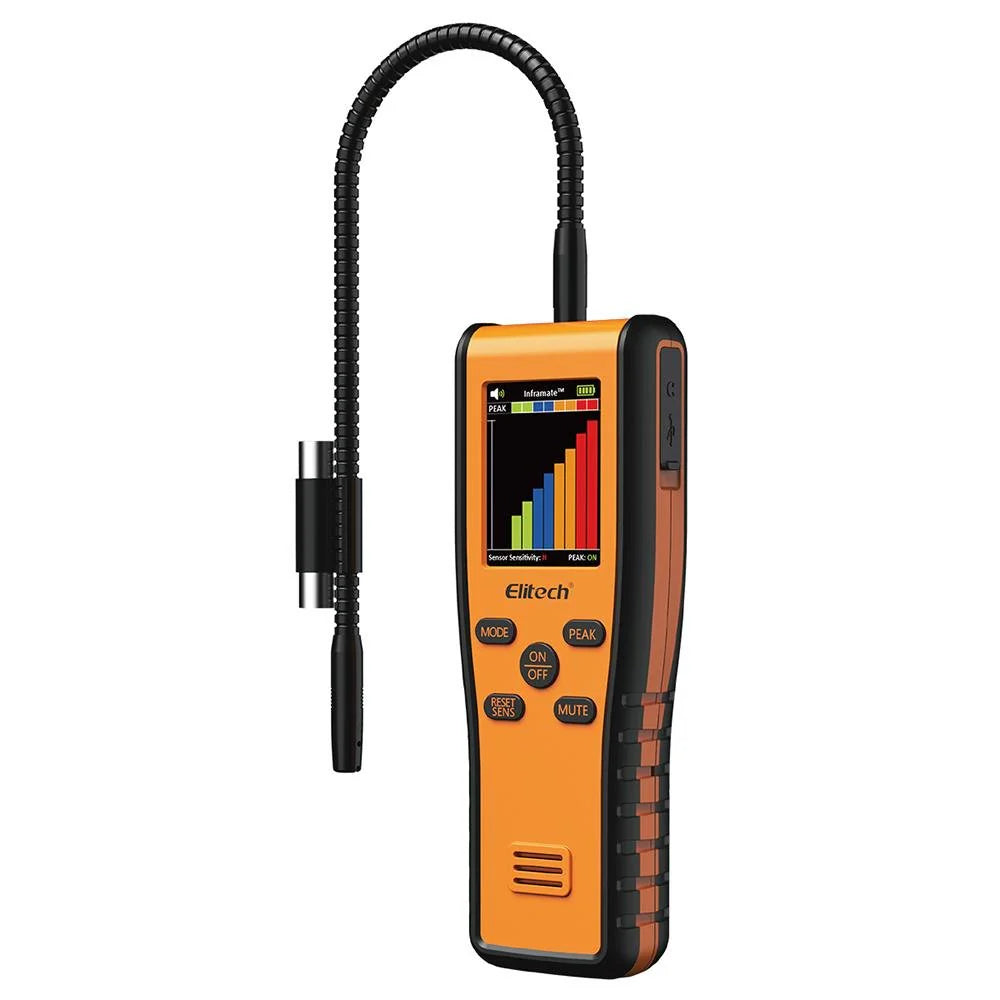

Inframate X – Leak detector

Elitech Inframate X 3‑in‑1 Smart Infrared Refrigerant Leak Detector

The Elitech Inframate X is a professional‑grade, smart leak detector designed for modern HVAC/R technicians. With a unique triple‑function infrared sensor, it can simultaneously detect halogen, carbon dioxide (CO₂) and hydrocarbon (HC) refrigerants, giving you one versatile tool for a wide range of systems.

Featuring a bright 2.8” TFT color display, the Inframate X lets you view leakage intensity in real time, mark peak leakage points, and switch between three refrigerant types at the press of a button. High, medium and low sensitivity settings help you quickly pinpoint even small leaks while avoiding false alarms.

Paired with the Elitech app via Bluetooth, you can keep the detector’s firmware updated over the air (OTA) so it always performs at its best.

Key features:

• Triple‑function infrared sensor for HAL, CO₂ and HC refrigerants

• Detects CFCs, HCFCs, HFCs, HFOs, CO₂ and HCs (e.g. R134a, R410A, R744, R290)

• Three‑level sensitivity: HAL 3 g/yr, CO₂ 6 g/yr, HC 7 g/yr

• Real‑time leakage graph and peak hold indication on 2.8” TFT screen

• Resistant to interference from other gases for more reliable readings

• Long‑life infrared sensor with up to 10 years’ lifespan

• Up to 8 hours working time with rechargeable dual 18650 lithium batteries

• 4‑hour fast charging via 5V/2A

• Compact, ergonomic design (210 × 72 × 35 mm, 450 g)

Specifications:

• Sensor principle: Infrared spectrum absorption

• Alarm: On‑screen indication + audible alarm

• Operating temperature: -10°C to +52°C (14°F to 125.6°F)

• Operating humidity: up to 90% RH (non‑condensing)

Ideal for HVAC/R service, commissioning and maintenance, the Elitech Inframate X helps you find leaks faster, work more efficiently and meet modern refrigerant handling standards with confidence.

Data Sheet
