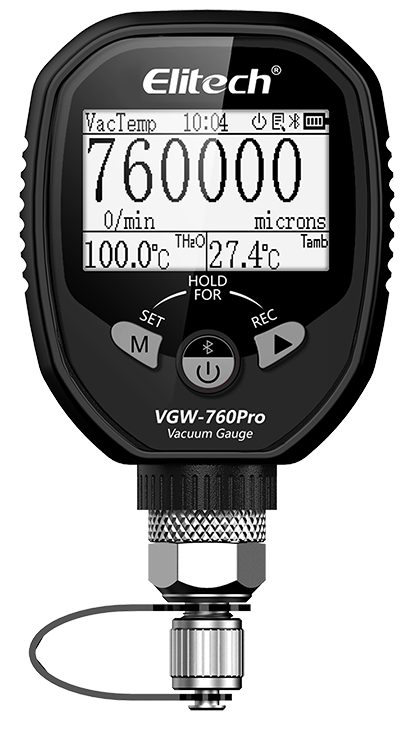

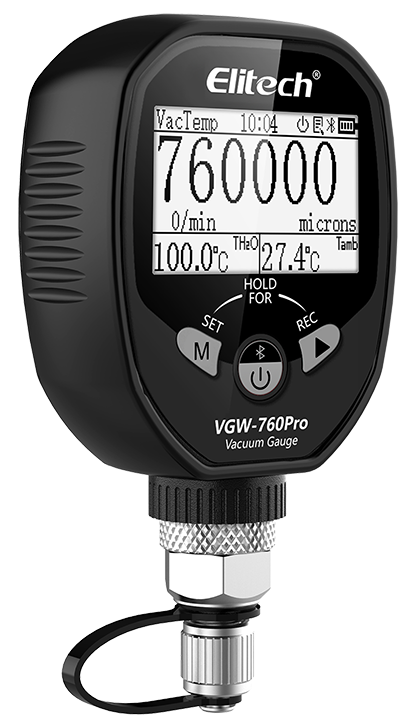

VGW-760 PRO – Vacuum Gauge

The Elitech VGW-760Pro Digital Vacuum Gauge is a professional‑grade tool designed for HVAC/R technicians who need fast, accurate, and reliable vacuum measurements on every job. With a wide measuring range from 1 to 760,000 microns and high‑precision resolution down to 1 micron, it gives you complete confidence during system evacuation and leak testing.

Featuring a clear dot‑matrix LCD with backlight, the VGW-760Pro is easy to read in any environment. Built‑in Bluetooth lets you connect to the Elitech app to monitor data in real time, record and export measurements, and even automatically generate detailed reports after leak tests—perfect for documentation and customer handover.

Designed for field use, this gauge supports multiple vacuum units (including microns, inHg, Torr, mbar, Pa, and more), as well as °C/°F temperature units, and works with standard 1/4” SAE connections. With robust construction, up to 27.5 bar max overpressure rating, long 120‑hour battery life in low‑power mode, and wireless transmission distance up to 100 m, the VGW-760Pro delivers dependable performance on residential, commercial, and industrial HVAC/R systems.

Key Features:

• Wide measuring range: 1–760,000 microns with high‑precision resolution (down to 1 micron in the 1–500 micron range)

• High accuracy: ±10% of reading ±10 microns at 25°C

• Multi‑unit support: inHg, Torr, psia, mbar, mTorr, Pa, microns, kPa; °C/°F temperature units

• Smart connectivity: Bluetooth app support for data logging, export, OTA firmware updates, and automatic leak test reports

• Long‑distance wireless: Up to 100 m (328 ft) transmission range

• Durable design: Max overpressure 27.5 bar; operating temperature -17.8 to 60°C (0–140°F)

• User‑friendly display: Dot‑matrix LCD with backlight for easy viewing

• Long battery life: Powered by 3 × 1.5V AA batteries, up to 120 hours in low‑power mode

• Compact and lightweight: 127 × 74 × 37 mm; only 275 g (0.61 lb)

• Standard connection: 1/4” SAE fitting for compatibility with most HVAC/R systems

Ideal for technicians who demand precise measurement, wireless monitoring, and professional reporting, the Elitech VGW-760Pro is a smart, reliable vacuum gauge that helps you work faster, document better, and create a greener future in HVAC/R service.
